GC-4085B Mine gas multi-point parameter chromatography automatic analyzer

The GC-4085B is a national key scientific and technological research project. It has the structural characteristics of separate temperature control for two columns, parallel simultaneous injection of three columns, and interchangeability between dedicated chromatographic columns and various detectors. It can also be connected to the gas sampling tubes of channels 1 to 32 underground. The automatic round-robin sampling, pre-cutting, detection of samples, automatic alarm for gas content exceeding the limit and report printing are realized through microcomputer control and data processing workstations. Realize the automatic analysis of gases during the oxidation and spontaneous combustion process of coal seams in real time, and improve the accuracy of early prediction and forecast of spontaneous combustion. Measure the changes in the concentration of gas components in a sealed fire area to determine the degree of extinguishing of the sealed fire area. It complies with the standard of "AQ/T 1019-2006 Chromatographic Analysis and Index Optimization Method of Marker Gases for Coal Seam Spontaneous Combustion".

Request Quote

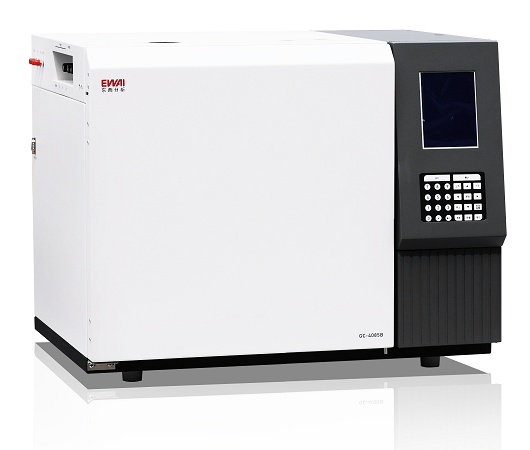

1742197225869.png GC-4085B Mine Gas Multi-point Parameter Chromatography Automatic Analyzer

The operation is fully automated: the instrument is automatically controlled by a microcomputer to achieve uninterrupted ring sampling at 1-32 points (expandable to 32 points), and the three columns are automatically injected and analyzed at the same time;

High stability: double-column box temperature control, three-column parallel connection and methane conversion furnace device respectively. The combination of double hydrogen flame, thermal conductivity detector, double-column box, three-column parallel connection, and equivalent to two gas chromatographs is integrated. The double-column box device ensures that 10 gas components such as carbon monoxide and alkenes are analyzed at different temperatures in different column boxes, and the separation of each analytical component is ensured, which greatly improves the analysis speed and analysis accuracy, and ensures the reliability of prediction and prediction.

Safety and long life: three pre-column device to prevent contamination of three analytical columns, maintain the whole set of instruments for long-term uninterrupted work. Large screen LCD display.

Coal mine gas full component analysis double column box single injection switching system.

Key Features

Look More

1742197225869.png GC-4085B Mine Gas Multi-point Parameter Chromatography Automatic Analyzer

The operation is fully automated: the instrument is automatically controlled by a microcomputer to achieve uninterrupted ring sampling at 1-32 points (expandable to 32 points), and the three columns are automatically injected and analyzed at the same time;

High stability: double-column box temperature control, three-column parallel connection and methane conversion furnace device respectively. The combination of double hydrogen flame, thermal conductivity detector, double-column box, three-column parallel connection, and equivalent to two gas chromatographs is integrated. The double-column box device ensures that 10 gas components such as carbon monoxide and alkenes are analyzed at different temperatures in different column boxes, and the separation of each analytical component is ensured, which greatly improves the analysis speed and analysis accuracy, and ensures the reliability of prediction and prediction.

Safety and long life: three pre-column device to prevent contamination of three analytical columns, maintain the whole set of instruments for long-term uninterrupted work. Large screen LCD display.

Coal mine gas full component analysis double column box single injection switching system.
